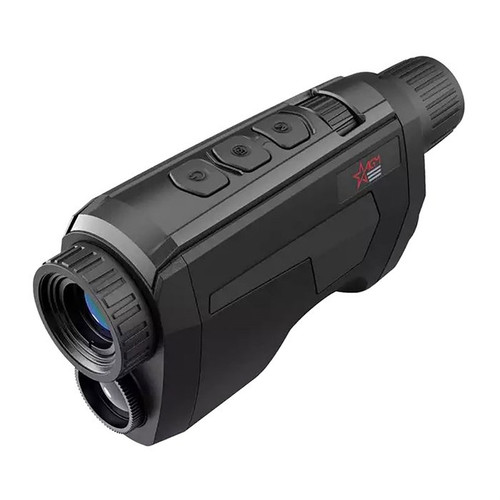

AGM Sidewinder TM25-384 Thermal Monocular 384x288 (50 Hz) 12 Micron Matte Black

AGM Sidewinder TM25-384 Thermal Monocular 384x288 (50 Hz) 12 Micron Matte Black

AGM Global Vision

MSRP: $2,080.75
$1,795.00
(You save $285.75 )
(No reviews yet) Write a Review
SKU:
AGM3142451004SI21
UPC:
810027775764
Model:
Sidewinder TM25-384
Manufacturer Part #:
3142451004SI21
Objective:
25mm
Finish:
Matte
Type:
Monocular
Power:
2-16X
Color:
Black
Subcategory:
Night Vision & Thermal Optics
Allocated:
N
Closeout:
N
Exlusive:
N
UoM:
EA
Items Per Unit:
0
LeResale Only:
N
NFA:
N
New Item:
N
Ground Only:
N
DropShip Block:
N
Dropshippable:
N
Coming Soon:
N
Department Name:
Optics
Case Width:
0.00
Items Per Case:
0
Case Weight:
0.00
Case Height:
0.00
Case Length:
0.00
Talo Exclusive:
N
Allocated Item?:
No
Condition:
New
Available Drop Ship Delivery Options:
next_day_air|second_day_air|ground
Waterproof:
IP67
Thermal Operating Temperature:
-30�C to +55�C (-22�F to +131�F)
Thermal Sensor Frame (Refresh) Rate:
50 Hz
Thermal Standby Mode:
Yes
Battery Run Time:
7 hr
Thermal Sensor Pixel Interval:
12 um
Thermal Snapshot Capture:
Yes
Thermal Optics Wi-Fi:
Yes
Battery Count:
1
Thermal Diopter Adj:
Yes
Thermal Magnification:
2-16x
Optics Type:
Thermal Monocular
Thermal Display / Monitor Type:
OLED
Warranty:
Mfg 5 Year
Thermal Human Detect Range:
1250 yds
Thermal Video Recording Resolution:
Yes
Brand:
AGM
Thermal Flat Field Correction:
Auto / Manual / External Correction
Thermal Display Resolution:
384 x 288
Thermal Aperture:
F1:0
Thermal Imaging Palettes:
White Black Red Hot Fusion
Thermal Temp Spot Tracking:
yes
Thermal Digital Zoom:
1x 2x 4x 8x
Battery Type:
18650 Rechargeable
Thermal Response Waveband:
8um to 14um
Optics Length:
7.4'
Thermal NETD:
<20 mk
Thermal FOV Deg:
10.5� x 7.9�
Thermal Objective Lens (Focal Length):
25mm
Thermal Power Supply:
5 VDC/2 A 1.75 W
Thermal Detector Type:
Vanadium Oxide Uncooled Focal Plane Array
Weight:
1.1 lb
Thermal Storage:
64 GB
Available Drop Ship Delivery Options:
nextdayairseconddayairground
Thermal Operating Temperature:
30C to 55C 22F to 131F
Thermal Magnification:
216x
Thermal Flat Field Correction:
Auto Manual External Correction
Thermal Aperture:
F10
Optics Length:
7.4
Thermal NETD:
20 mk
Thermal FOV Deg:
10.5 x 7.9
Thermal Power Supply:
5 VDC2 A 1.75 W
Adding to cart… The item has been added
Notify Me When Available
The Sidewinder is AGM's premium handheld observational thermal monocular series. All models come equipped with either a 384×288 twelve micron infrared detector and a 1024×768 OLED display, for improved color rendering. The Sidewinder thermal sensors also come equipped with the most sensitive temperature ratings in its class, coming in at sub-20 millikelvin across the entire product family. Other improvements over the Taipan monoculars include a more robust body/housing and a removable, rechargeable 18650 battery. These units also boast an impressive waterproof rating, which ensures users have peace of mind while utilizing these under the vast majority of weather conditions. The Sidewinders built-in 64 GB memory also sits at the top of its class on the market, with advanced software supporting both video recording and image capturing. The primary uses for these thermal monoculars include, but are not limited to: hunting, law enforcement, search-and-rescue, personal security, conservation, anti-poaching, camping, hiking and different marine applications. Features 12μm, 384×288 resolution detector Highest thermal sensitivity (NETD <20mK) Advanced image processing (Digital Detail Enhancement, digital Noise Reduction and NLM algorithm) 50 Hz image frame rate 1024×768 resolution OLED display Built-in memory supports video/audio recording and snapshot capturing 64 GB memory module Wi-Fi hotspot 1×, 2×, 4× and 8× digital zoom Replaceable and rechargeable Li-Ion battery Up to 7 hours continuous running External power supply capability
!
